Process Profile (Proc Profile)

The Process Profile (Proc Profile) feature provides a built-in mechanism to collect and visualize performance profiles for StarRocks Frontend (FE) and Backend (BE) processes. By generating flame graphs for CPU and memory allocation, it helps developers and administrators diagnose performance bottlenecks, high resource utilization, and complex runtime issues directly from the Web UI.

Overview

Process Profiling is a system-level diagnostic tool that captures the state of the StarRocks processes over a period of time. Unlike Query Profiles, which focus on individual SQL execution, Process Profiles provide a holistic view of what the processes are doing, including background tasks, metadata management, and internal synchronization.

Page Examples

The Proc Profile interface is integrated into the StarRocks Web UI under the proc profiles tab.

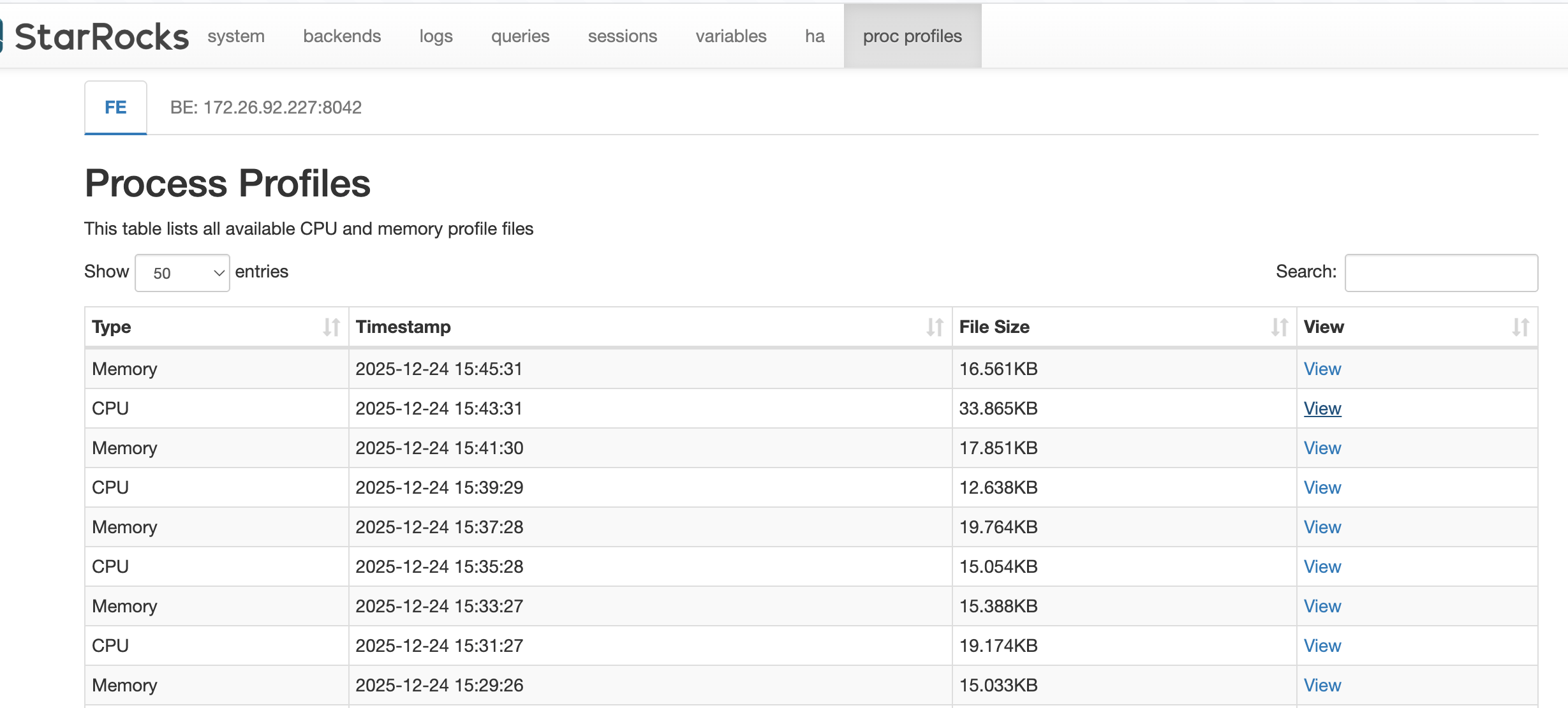

Profile List View

The main page displays a list of collected profile files for the selected node. You can switch between FE and different BE nodes using the tabs at the top.

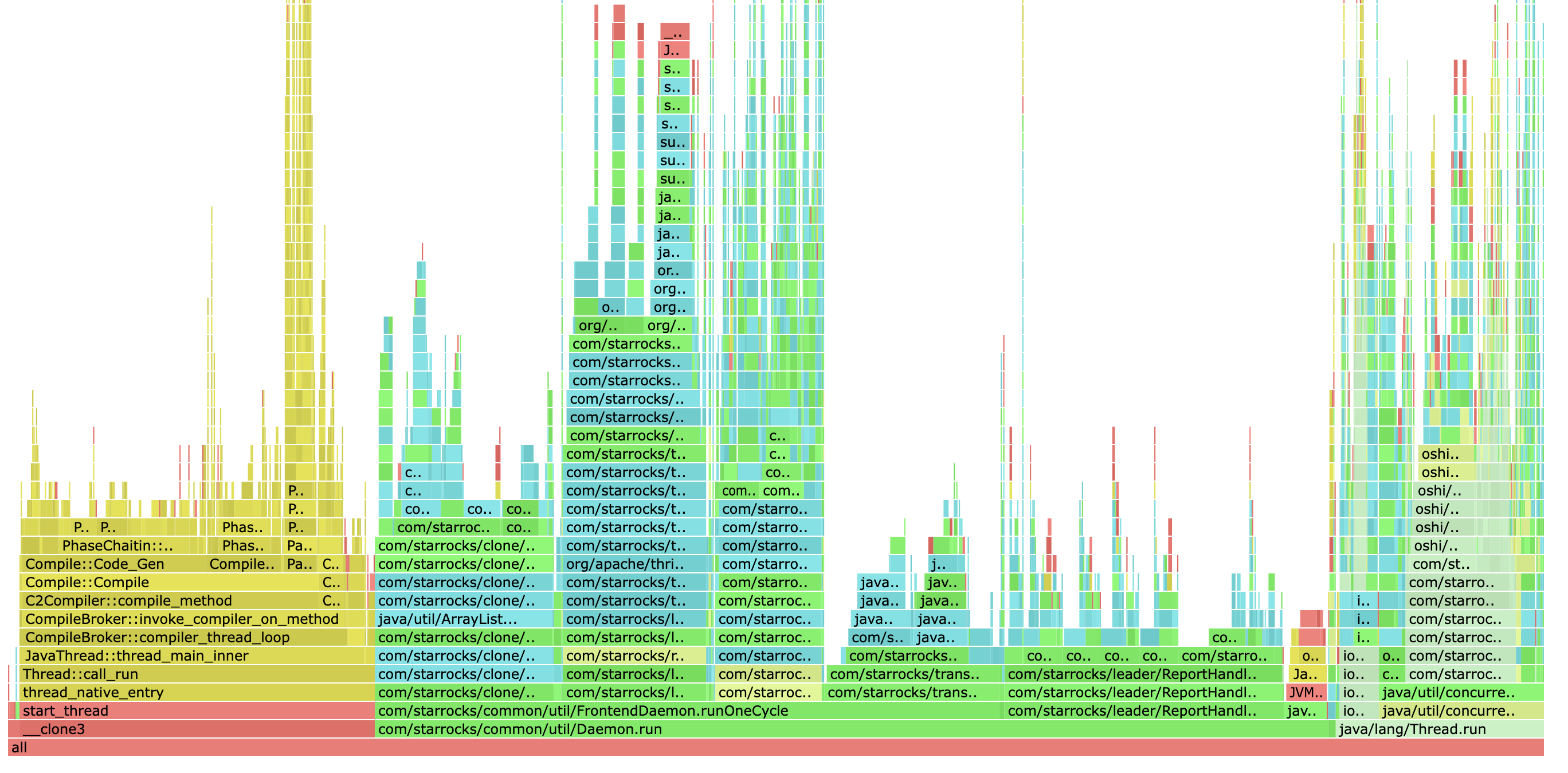

Flame Graph

A Flame Graph is a visualization tool used to show the resource consumption distribution of functions or code paths in a program. It represents the call stack using stacked rectangles (usually in a horizontal "flame" shape), where:

• Each box represents a function (or method) call.
• The width of a box represents the amount of resources consumed by that function (such as CPU time, memory allocation frequency, or lock wait time). The wider the box, the more resources are consumed.
• Vertical stacking represents the calling relationship, with the bottom layer being the entry function and child functions stacked on top.

Flame graphs help developers and operations personnel quickly identify code hotspots, performance bottlenecks, and call paths with the highest resource consumption, and are commonly used for performance tuning and troubleshooting.

In StarRocks Process Profile, flame graphs are used to visually display the data distribution of CPU usage, memory allocation, and (in BE scenarios) lock contention, helping to locate the most time-consuming code segments or call paths.

Use Scenarios

• CPU Hotspot Analysis: Identify which code paths or functions are consuming the most CPU cycles.
• Memory Allocation Profiling: Track where memory is being frequently allocated to find potential memory pressure sources.
• R&D Troubleshooting: Assist developers in analyzing complex bugs or performance regressions in production environments without needing external profiling tools.

Feature Description

How to Use

1. Access: Open the StarRocks Web UI (default port 8030) and click on the proc profiles tab.
2. Select Node: Choose the FE tab or a specific BE node tab.
3. Visualize: Click the View link for any entry.
   • For FE, it extracts and displays a pre-generated HTML flame graph.
   • For BE, it may convert a raw pprof file into an SVG flame graph on the fly (the first view might take a few seconds as it performs the conversion).
4. Interact: Use the flame graph to zoom into specific call stacks, search for function names, or analyze stack depth.

Information Provided

• Type: CPU, Memory (Allocation), or Contention (BE only).
• Timestamp: When the profile collection was completed.
• File Size: Size of the compressed profile data.
• Flame Graph: A hierarchical visualization where the width of each box represents the relative resource consumption (CPU time, allocation frequency, or lock wait time).

Configuration

The profiling feature performs function-level sampling to generate flame graphs for visualization.

Frontend (FE) Configuration

FE profiling is managed by an internal daemon and uses AsyncProfiler for data collection. You can configure these in fe.conf.

Parameter	Default	Description
proc_profile_cpu_enable	true	Whether to enable automatic CPU profiling for FE.
proc_profile_mem_enable	true	Whether to enable automatic memory allocation profiling for FE.
proc_profile_collect_time_s	120	Duration (seconds) for each profile collection.
proc_profile_jstack_depth	128	Maximum Java stack depth to collect.
proc_profile_file_retained_days	1	How many days to retain profile files.
proc_profile_file_retained_size_bytes	2147483648 (2GB)	Maximum total size of retained profile files.

Backend (BE) Configuration

BE profiles are collected using the built-in gperftools and are typically collected via a background script or manual triggers. The collected data is then converted into flame graphs using pprof.

Configuration in be.conf

Parameter	Default	Description
brpc_port	8060	Port used by collection scripts to fetch data from BE.
sys_log_dir	${STARROCKS_HOME}/log	Base directory for storing collected profiles (stored in the proc_profile subdirectory).
flamegraph_tool_dir	${STARROCKS_HOME}/bin/flamegraph	Path to conversion tools (pprof, flamegraph.pl).
COLLECT_BE_PROFILE_INTERVAL	60	Collection interval in seconds when running the collect_be_profile.sh script in daemon mode.

Manual BE Collection Options

The collect_be_profile.sh script supports the following command-line options:

Option	Default	Description
--profiling-type	cpu	Type of profile to collect: cpu, contention, or both.
--duration	10	Duration (seconds) for each profile collection.
--interval	60	Interval (seconds) between collections in daemon mode.
--cleanup-days	1	Number of days to retain profile files.
--cleanup-size	2147483648 (2GB)	Maximum total size of retained profile files.
--daemon	-	Run the collection script in daemon mode in the background.

Manual BE Collection Example

You can use the provided script to trigger or schedule BE collection:

# Collect a 30-second CPU profile
./bin/collect_be_profile.sh --profiling-type cpu --duration 30

# Run in daemon mode to collect profiles every hour
./bin/collect_be_profile.sh --daemon --interval 3600
